Cabo interno de distribuição óptica

Descrição do produto

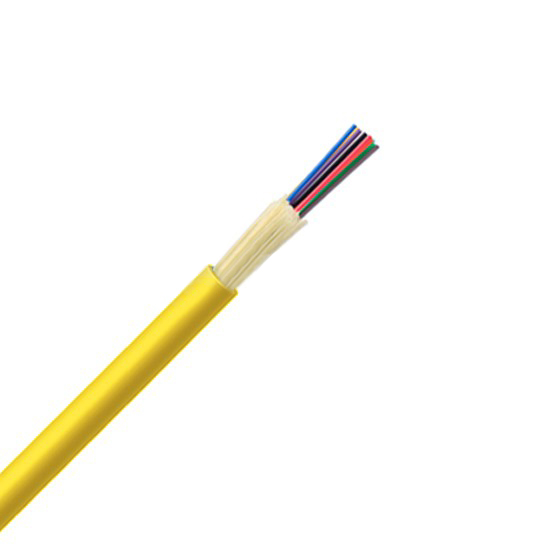

Tight-Buffered Distribution Indoor Cable



Tight-buffered fiber distribution cable consists of several tight-buffered fibers consolidated in a single cable. Compared with the bare fiber, the tight-buffered fiber is coded with an additional 900um layer over the 250um fibers for protection. Generally, the tight-buffered distribution cable comes in various fiber counts ranging from 2 to 144 fibers. According to different application requirements, these cables are usually plenum or riser rated but can also be constructed as an indoor/outdoor or low-smoke (LSZH) cable.

Características

  • Contains several tight-buffered fibers bundled under the same jacket with Kevlar strength members
  • Lightweight and softness.
  • Excellent stripping performance of tight buffer fiber.
  • Cable diameter and bending radius are small.
  • It can be installed freely in a narrow room.

Technical Structure

distribution cable

Características geométricas

Tipo de cabo 2 4 6 8 12 16 24
Dimensão do cabo (mm) 5.0±0.2 5.1±0.2 5.3±0.2 5.9±0.2 6.6±0.2 7.5±0.3 8.5±0.5
Peso do cabo (kg/km) 19 21 23 28 34 46 57
Diâmetro de TBF(μm) 900±50

Características mecânicas

Resistência à tração (N) Termo longo 200
Termo curto 660
Resistência à escova (N/100mm) Termo longo 300
Termo curto 1000
Estática 10×D (D: Cable Diameter)

Fiber Type

Tipo de fibra (dimensão de núcleo / revestimento) 9/125, 50/125, 62.5/125

Características de transmissão

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Atenuação (dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Largura de banda mínima (MHz·km) ≥400/400 ≥160/500

Características ambientais

Temperatura de funcionamento do armazenamento -20°C + 60°C
