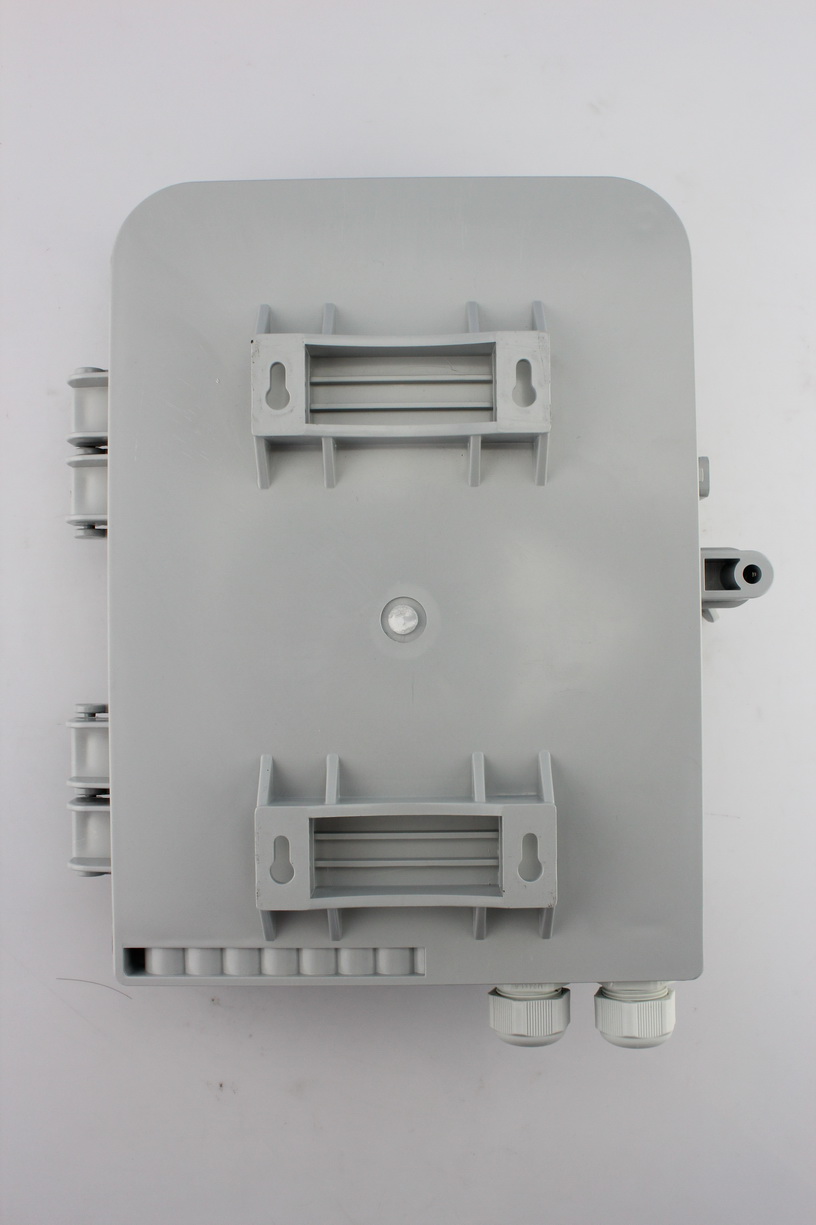

FTTH Fiber Terminal Box with 16 Fibers
These boxes are used for the termination of fiber optic cables both for internal and external use with an adequate grade of IP.
Description
This FTTH fiber terminal box terminates up to 2 fiber optic cables. It offers spaces for splitters and up to 16 fusions. Also, it allocates 16 SC adapters that can work under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Características
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Easy installations. Ready for wall mount and installation kits provided.
- Adapter slots used. No screws and tools needed for installing adapters.
- Ready for splitters. Designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting, and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level – IP65.
- Accommodates both cable glands as well as tie-wraps
- Lock provided extra security
Dimensions and Capability
- Dimensions: 320mm*230mm*90mm (W x H x D)
- Weight: 1.30KG
- Accommodates splitters and up to 16SC simplex adapters
- Max allowance for entry cables: max diameter 16mm, up to 2 cables
- Max allowance for exit cables: up to 16 simplex cables
Operation Conditions
- Temperatures:-40℃ — 60℃
- Humidity:93% at 40℃
- Air Pressure:62kPa – 101kPa
Package Includes
- Terminal box, 1 unit
- Keys for lock, 2 keys
- Wall mount installation accessories, 1 set
