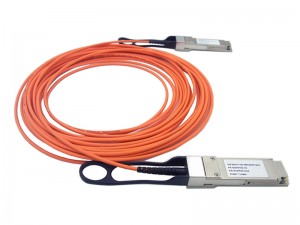

QSFP+ Active optical cable

QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel and PCIE.

Product Description

Exif_JPEG_PICTURE

Datasheet for QSFP+ AOC

Download Instruction

40GBASE QSFP+ Active Optical Cable

QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel and PCIE. It is compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4. It integrates four data lanes in each direction with 40 Gb/s aggregate bandwidth.
All our 40G QSFP+ AOC are 100% compatible with major brands like Cisco, Juniper, Enterasys, Extreme, H3C and so on.



Features

  • Four-channel full-duplex active optical cable
  • Transmission data rate up to 11.3Gbit/s per channel
  • Reliable VCSEL array technology using multimode fiber
  • Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
  • Low power consumption <1.5W
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable QSFP form factor

Applications

  • Infiniband QDR/DDR/SDR
  • Datacenter
  • 40G Ethernet
  • 4G/8G/10G Fiber Channel

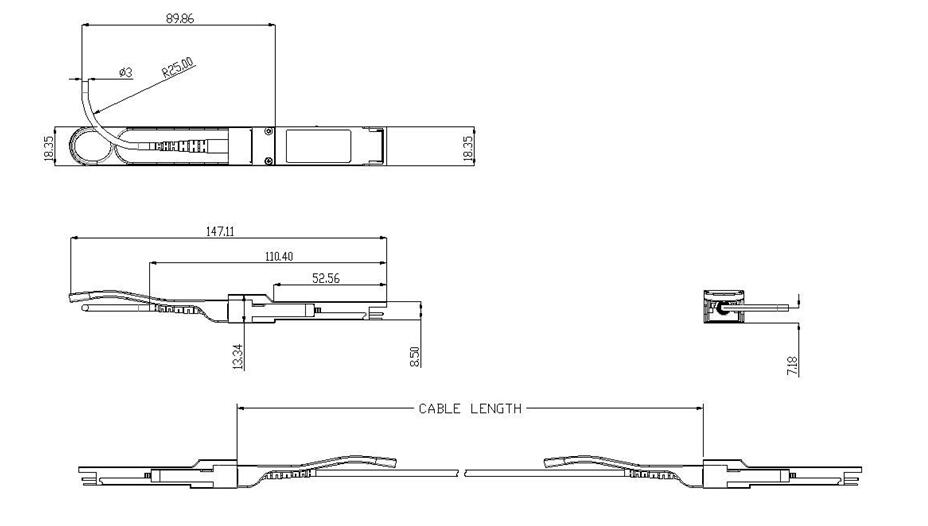

Mechanical Dimensions

qsfp aoc drawing
