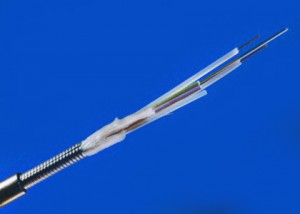

The outdoor cable GYTS is structured as this: The coloring fiber are positioned in a central loose tube and Fillers are stranded around the metallic central strength member. The PSP is longitudinal covering, and the cable is completed with PE sheath. Inside the loose tube is filled with the water-resistant filling compound.
Features
The outdoor cable GYTS is structured as this: The coloring fiber are positioned in a central loose tube and Fillers are stranded around the metallic central strength member. The PSP is longitudinal covering, and the cable is completed with PE sheath. Inside the loose tube is filled with the water-resistant filling compound.
Structure
Geometrical Characteristics
| Cable Type | 2-60 |
| Cable Dimension (mm) | 11.2 |
| Cable Weight(kg/km) | 100 |
Mechanical Characteristics
| Tensile strength (N) | Long Term | 600 |
| Short Term | 1500 | |
| Crush Resistance(N/100mm) | Long Term | 300 |
| Short Term | 1000 | |
| Bending Radius(mm) | Dynamic | 224 |
| Static | 112 |
Fiber Type
| Fiber Type(core/cladding dimension) | 9/125,50/125,62.5/125 |
Transmission Characteristics
| SMF | 50/125 | 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
| Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
| Minimum Bandwidth(MHz·km) | —— | ≥400/400 | ≥160/500 |
Environmental Characteristics
| Storage Operating Temperature | -40℃～+70℃ |
