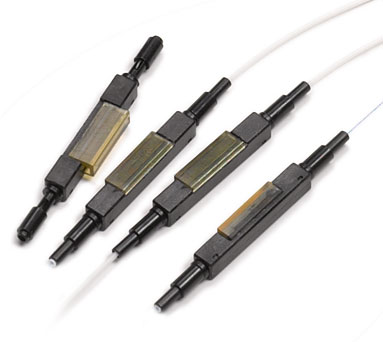

L925 Fiber Mechanical Splice

Mechanical Splice for 0.25-0.9mm cable

Product Description

L925d

NSMS-925 Instruction

Download Instruction

Fiber Mechanical Splice for 0.25-0.9mm cable

Features

  • Applied to connect φ0.25–φ0.9 fiber/cable;
  • Take advantage of mature V-groove technologies, suitable for single mode and multimode;
  • No fixture. Fast operation within than 1 minute

Technical Specification

Item Parameter
Applicable for φ0.25 mm &φ0.90 mm fiber
Optical fiber diameter 125μm ( 652 & 657 )
Tight buffer diameter 250μm & 900μm
Applicable mode single & multimode
Operation time about 10s (without fiber cut)
Insert loss ≤ 0. 10dB(1310nm & 1550nm)
Return loss ≤ -40dB
Fastening strength of naked fiber >5 N
Clamping force of fiber with tight buffer >8 N
Using temperature -40~+75℃
Reusability (10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB

Instruction

Related Tools

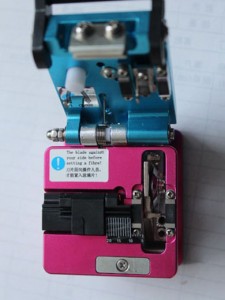

Fiber cleaver

Fiber cleaver

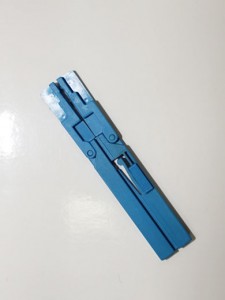

Stripper

Stripper

Guide

Guide
