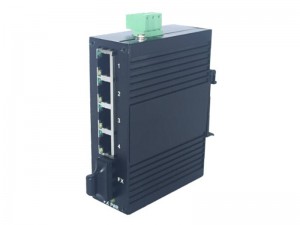

Industrial Fiber Media Converter with 4 UTP ports+1 Fiber port

Description

Industrial fiber media converters are designed for industrial development in one of industrial-grade transceivers. It can work in the harsh industrial electromagnetic environments for industrial Ethernet devices, over long distances via optical fiber and anti-electromagnetic interference with communications, suitable for different temperature environments, and provides a convenient, reliable way for networking for industrial control systems.

It is a speediness 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. The series supports 1 UTP ports and 1 fiber ports. TP(RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100BaseFX supports single-/multi-mode, SC/ST/FC/LC connector, optional.

It adopt industry standard design, IP40 protection, power supply input(9V～36VDC), -40 to 80°C working temperature.

Features

• 3/802.3u/802.3x,store and forward
• Plug-and-play, easy to installation
• 10/100M, F/H duplex, MDI/MDI-X auto negotiation
• -40℃ to 80℃ operating temperature range
• Designed for industrial applications. IP40 protection

Specification

• Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
• RJ45 port rate: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
• Fiber Ports: 100BaseFX ports (SC/ST/FC/LC connector, optional)
• Single-mode: 20, 40,60, 80,100,120Km,optional
• Multi-mode: 2KM
• Wavelength: 850nm, 1310 nm, 1550nm
• Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
  Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm

Power input option

• Input Voltage: 24VDC(9~36V DC)
• Opposite connection protection

Environment Limits

• Operating Temperature: -40 ℃to +80°℃
• Storage Temperature: -40℃ to +85℃
  Ambient Relative Humidity: 5% to 95% (non-condensing)

Dimension

• Dimensions: 103 mm*78mm*32mm
• Casing: IP40 protection, Aluminium Alloy
• Installation: DIN-Rail or wall mounting
• Weight: 260g
