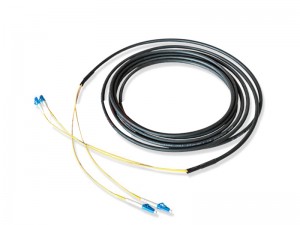

FTTA patch cable

FTTA patch cable is a solution of fiber to the antenna. Produced with duplex Base Station Far Transmission fiber cable, FTTA patch cable is kind of indoor/outdoor fiber jumper with 7.0mm or 4.8mm diameter, water blocking aramid yarns and UV resistant LSZH jacket.

Product Description

ftta

Description

FTTA patch cable is a solution of fiber to the antenna. Produced with duplex Base Station Far Transmission fiber cable, FTTA patch cable is kind of indoor/outdoor fiber jumper with 7.0mm or 4.8mm diameter, water blocking aramid yarns and UV resistant LSZH jacket.

Application

  • Mainly used in wireless base station (BS) horizontal and vertical cabling
  • Indoor/outdoor application
  • FTTH, FTTA application

Feature

  • Good mechanical and environmental characteristics.
  • Flame retardant
  • Soft, flexible jacket; easy to lay and splice, and with big capacity data transmission.

Cable Parameter

Fiber    Count Cable Diameter (mm) Cable Weight (kg/km) Tensile (N) Crush (N/100mm) Min. Bend Radius (mm) Temperature()
Long   Term Short   Term Long   Term Short   Term Dynamic Static
2 7 42.3 200 400 500 1000 20D 10D -20~+60
Note:

1.All the values in the table are just for reference only, subject to change without notice.

2.The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter.

3.D is outer diameter of the round cable.

4.The minimum bend radius (static) is 5D when G657 fiber is used.

Specification

Connectors SC/LC/FC/ST
Ferrule Ceramic
Optical Fiber SM G652D or SM G657A
Cable Jacket LSZH or PU
Cable Strand 2 fibers
Optical spec IL (Max.) ≦0.3 dB
RL ≧50 dB
Repeatability ≦0.2dB   500 times mating cycles
Working Temperature -25℃ – +75℃
Storage Temperature -45℃ – +85℃
