Features

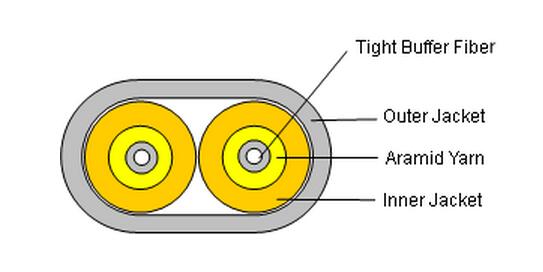

Structure
Geometrical Characteristics
| Cable Type | φ3.0 | φ2.4 | φ2.0 | φ1.8 |
| Cable Dimension (mm) | 4.00±0.1/6.60±0.2 | 3.6±0.1/6.0±0.2 | 3.1±0.1/5.0±0.2 | 2.8±0.1/4.6±0.2 |
| Cable Weight(kg/km) | 17 | 12 | 9 | 8 |
| TBF Diameter(μm) | 900±50 | 600±50 | ||
Mechanical Characteristics
| Tensile strength (N) | Long Term | 100 |
| Short Term | 200 | |
| Crush resistance（N/100㎜） | Long Term | 100 |
| Short Term | 500 | |
| Bending Radius(CM) | Dynamic | 20×H (H: Cable Axis) |
| Static | 10×H (H: Cable Axis) |
Fiber Type
| Fiber Type(core/cladding dimension) | 9/125,50/125,62.5/125 |
Transmission Characteristics
| SMF | 50/125 | 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
| Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
| Minimum Bandwidth(MHz·km) | —— | ≥400/400 | ≥160/500 |
Environmental Characteristics
| Storage Operating Temperature | -20℃～+60℃ |
