Features

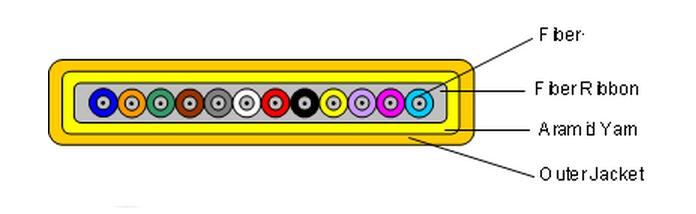

Structure
Geometrical Characteristics
| Cable Type | 4、6 | 8、12 |
| Cable Dimension (mm) | (2.4±0.2)×(3.3±0.2) | (2.4±0.2)×(5.0±0.2) |
| Cable Weight(kg/km) | 6.8 | 9.4 |
| Coloring Fiber Diameter(μm) | 260±5 | |
Mechanical Characteristics
| Tensile strength (N) | Long Term | 60 |
| Short Term | 100 | |
| Crush resistance（N/100㎜） | Long Term | 100 |
| Short Term | 500 | |
| Bending Radius(CM) | Dynamic | 20×H (H: Cable Axis) |
| Static | 10×H (H: Cable Axis) |
Fiber Type
| Fiber Type(core/cladding dimension) | 9/125 |
Transmission Characteristics
| SMF | |
| 1310/1550(nm) | |
| Attenuation(dB/km) | ≤0.40/0.30 |
| Minimum Bandwidth(MHz·km) | —— |
Environmental Characteristics
| Storage Operating Temperature | -20℃～+60℃ |
