Fiber Optic Patch Cords

Newsunn can customize all kinds of fiber optic patch cords exactly as you need for connector,length,SM or MM, Simplex or duplex, or multi cores.

Product Description

Newsunn can customize all kinds of fiber Optic Patch Cords exactly as you need for connector,length,SM or MM, Simplex or duplex, or multi cores.

Features

  • Connectors Type: LC, FC, SC, ST, MU, MTRJ, E2000, SMA
  • Ferrule Interface Type: UPC ,APC
  • Fiber Types: Simplex, Duplex, Multicore
  • Fiber Mode: Single-mode (G.652, G.655), Multi-mode (OM1, OM2, 10G OM3 and 10G OM4)
  • Low insertion loss, high return loss
  • Excellent mechanical endurance
  • Good in repeatability and exchangeability
  • Insertion loss: <0.3dB
  • Operation temperature: -20° to 85°C
  • Jacket material: PVC, LSZH,OFNP
  • 100% optically tested to ensure high performance

Specification

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

Single Mode

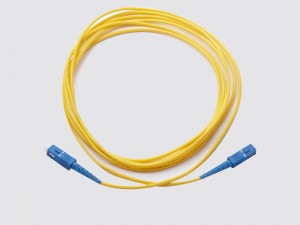

SC-SC SM Simplex

SC-SC SM Simplex

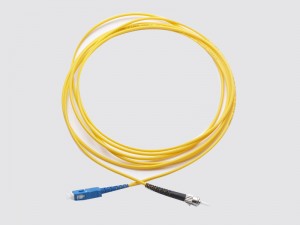

SC-ST SM Simplex

SC-ST SM Simplex

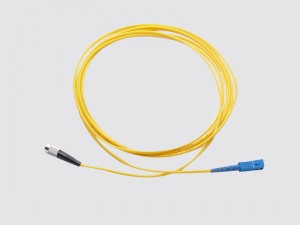

FC-SC SM Simplex

FC-SC SM Simplex

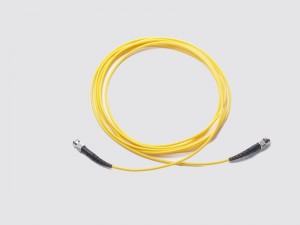

ST-ST SM Simplex

ST-ST SM Simplex

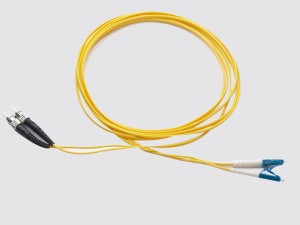

LC-FC SM Duplex

LC-FC SM Duplex

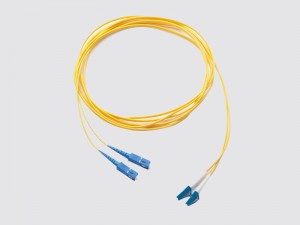

SC-LC SM Duplex

SC-LC SM Duplex

Multimode: OM1(62.5/125) OM2(50/125) OM3(50/125) OM4(50/125)

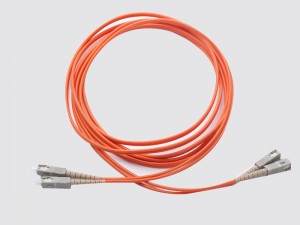

SC-SC OM1 Duplex

SC-SC Duplex

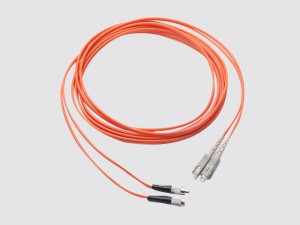

FC-SC OM2 Duplex

FC-SC Duplex

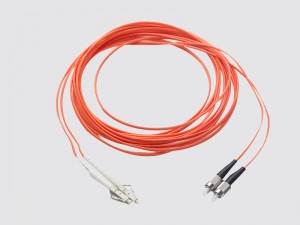

FC-LC OM2 Duplex

FC-LC Duplex

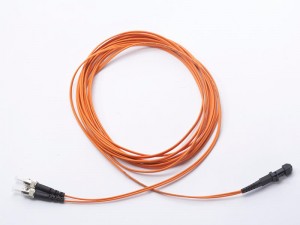

MTRJ-ST Duplex

MTRJ-ST Duplex

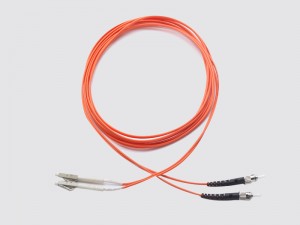

LC-ST OM1 Duplex

LC-ST Duplex

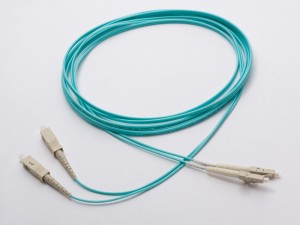

SC-LC OM3 Duplex

SC-LC OM3 Duplex

Multicore Patch cord/Pigtail

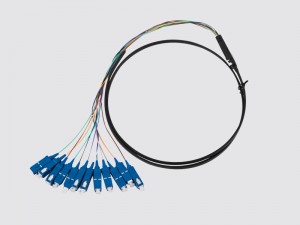

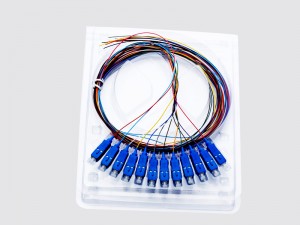

SC 12 core pigtail

SC 12core pigtail w/o jacket

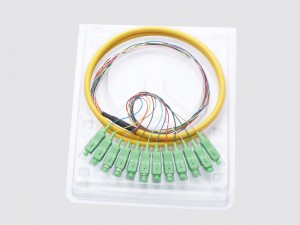

SC APC 12 core

SC/APC 12 core pigtail w/ jacket

12 core Fan-out pigtail

SC/UPC 12 core Fan-out pigtail

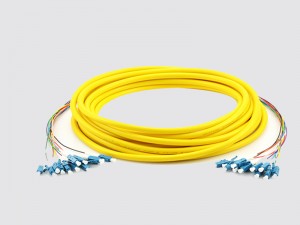

12 core LC patch cord

LC/UPC 12 core patch cord

Special patch leads

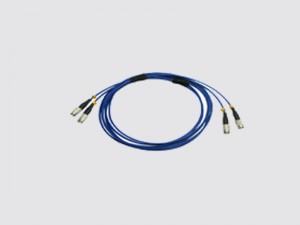

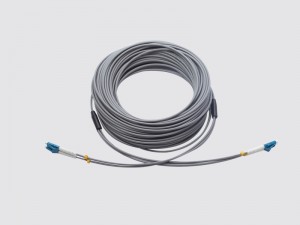

SMF armored fiber patch cable product

Armored FC duplex patch cord

Armored

Armored LC duplex patch cord

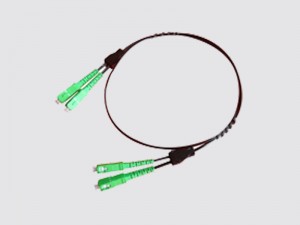

FTTH Patch Cable-fs(1)

FTTH Patch Cable

MAKE TO ORDER Customizing your PVC/LSZH Fiber Patch Cables(options)

FIBER TYPE CONNETCORS POLISH TYPE FIBER COUNT CABLE DIAMETER CABLE LENGTH
• SM: OS1 9/125
OS2 9/125• MM: OM1 62.5/125• OM2 50/125

• OM3 10G 50/125

• OM4 50/125

• LC

• SC

• ST

• FC

• MU

• MTRJ

• MPO(Female)

• MPO(Male)

• E2000

• SMA

• DIN

• None: UPC (Default)

• U: UPC

• A: APC

• SX: Simplex

• DX: Duplex

• 4F: 4 Fibers

• 6F: 6 Fibers

• 8F: 8 Fibers

• 12F: 12 Fibers

• >12 Fibers

• 900 um

• 2.0 mm

• 3.0 mm

• Custom

• 1 m

• 2 m

• 3 m

• 5 m

• 10 m

• 15 m

• 20 m

• Custom

Ask for Quote NOW!
