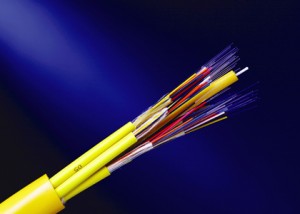

Breakout Cable 24-144 F

Product Description

break-out cable (Central)

Features

  • Twenty-four-core Break-out Cable
  • Central Strength Member
  • Simplex Cable
  • Wrap and ripcord
  • Element: Simplex cable,some simplex cable are stranded around the non-metallic central strength member.

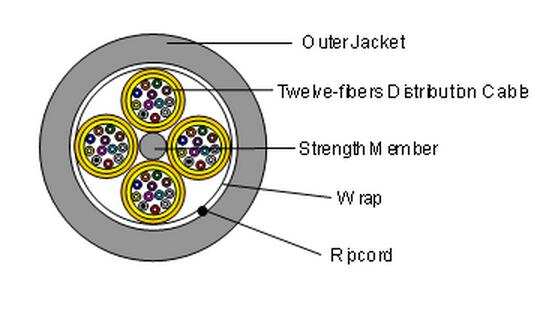

Structure

breakout cable subcable

Geometrical Characteristics

Cable Type 24 48 64 72 96 144
Subunit Fiber Number 6 12 8 12 12 12
Cable Dimension (mm) 15.5 17 21.6 21 24 26.2
Cable Weight(kg/km) 225 226 386 349 481 526
TBF Diameter(μm) 900±50

Mechanical Characteristics

Tensile strength (N) Long Term 200
Short Term 600
Crush resistance(N/100㎜) Long Term 300
Short Term 1000
Bending Radius(CM) Dynamic 20×D (D: Cable Diameter)
Static 10×D (D: Cable Diameter)

Fiber Type

Fiber Type(core/cladding dimension) 9/125, 50/125, 62.5/125

Transmission Characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Minimum Bandwidth(MHz·km) —— ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
