Armored Distribution Cable

Product Description

distribution armored cable

Features

  • 600μm tight buffer fiber,steel tube protect, reinforcing steel-wire braiding flame-retardant jacket.
  • High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.
  • Excellent stripping performance of tight buffer fiber.
  • Suited to SM fiber and MM fiber.

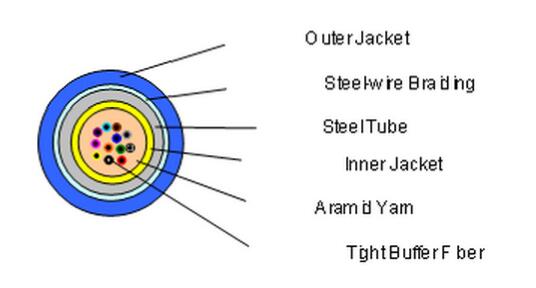

Structure

distribution cable

Geometrical Characteristics

Cable Type 4、6 8、12
Cable Dimension (mm) 6.5±0.5 7.5±0.5
Cable Weight(kg/km) 73 93
TBF Diameter(μm) 600±50

Mechanical Characteristics

Tensile strength (N) Long Term 100
Short Term 200
Crush Resistance(N/100mm) Long Term 300
Short Term 1000
Bending Radius(CM) Dynamic 20×D (D: Cable Diameter)
Static 10×D (D: Cable Diameter)

Fiber Type

Fiber Type(core/cladding dimension) 9/125, 50/125, 62.5/125

Transmission Characteristics

SMF 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(dB/km) ≤0.40/0.30 ≤3.5/1.5 ≤3.5/1.5
Minimum Bandwidth(MHz·km) —— ≥400/400 ≥160/500

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
