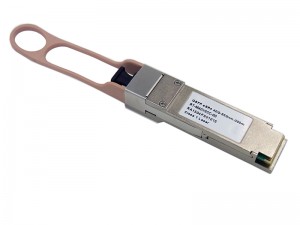

40GBASE-SR4 QSFP+ 850nm 300m Transceiver for MMF

The 40GBASE-SR4 QSFP+ is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications.

Product Description

qsfp+ SR4

Datasheet for QSFP+ SR4

Download Instruction

40GBASE SR4 QSFP+ 850nm 300m Transceiver for MMF

The 40GBASE SR4 QSFP+ is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 300m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ eSR4 is one kindof parallel transceiver which provides increased port density and total system cost savings.

Features

  • Up to 300m on OM3 Multimode Fiber (MMF)
  • MPD inside to monitor TX power
  • Four-channel full-duplex transceiver modules
  • Transmission data rate up to 11.3Gbit/s per channel
  • Low power consumption <1.5W
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable QSFP form factor
  • MPO connector receptacle
  • Built-in digital diagnostic function

Applications

  • InfiniBandQDR, DDR and SDR
  • Proprietary High Speed Interconnections
  • Datacenter

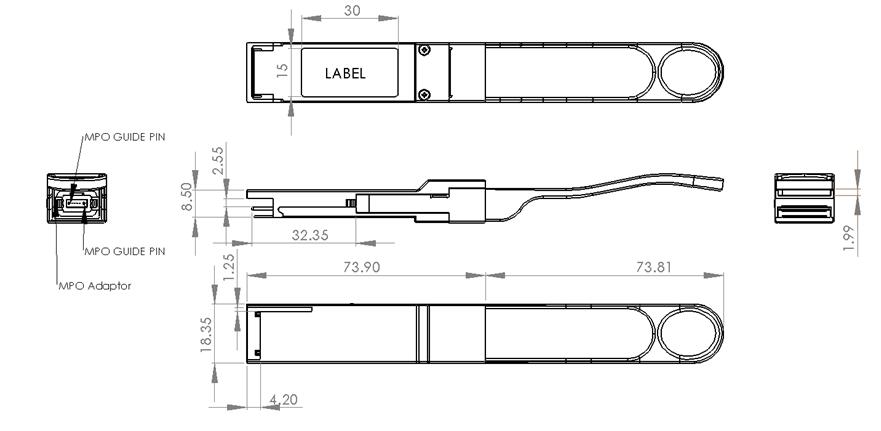

Mechanical Dimensions

qsfp+ SR drawing
