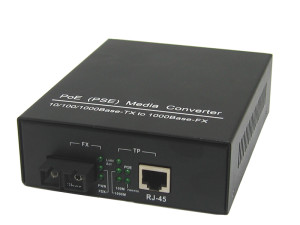

1000M PoE (PSE) Media Converter

Description

This PoE/PSE media converter supports IEEE802.3U IEEE802.3z 1000Base-Tx/Fx protocol and IEEE802.3af PoE PSE application, internal AC/DC power supply and PSE controller can output up to 25Watts (DC48V/540mA,) or 15.4Watts (DC48V/350mA,) power into CAT5 twisted-pair cable.

Features

• In conformity to IEEE802.3U IEEE802.3z 1000Base-Tx/Fx standard.
• IEEE802.3af PoE PSE compatible
• Half duplex: back pressure flow control
• Full duplex: IEEE802.3x flow control.
• Automatic identification of MDI/MDI-X cross line..
• Supports link fault pass through function.

Specification

1. Standard Protocol: IEEE 802.3u 100 Base-TX, IEEE802.3z, IEEE802.3ab standard, IEEE802.3af
2. Connector: one UTP RJ-45 connector, one SC/ST connector, one AC-inlet connector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter: 100-240V AC
5. Environmental temperature: 0℃-50 ℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Optical fiber:multi-mode: 50/125, 62.5/125 or 100/140μm single mode:: 8.3/125, 8.7/125, 9/125
9. Dimensions:Power internal:140mm(L) x 110mm(W)x40mm(H)
